Features
- Adjustable water temperature: boiling water 100 °C to 68 °C, chilled water 5 °C to 14°C
- Power-Pulse electronic technology controls the set boiling water temperature within 0.2 °C
- Choice of fingertip control for fast cup filling ( lever down ) or hands-free pot filling ( lever up )
- Two safety modes - Can be set to require finger-thumb operation for boiling water access, eliminating the risk of accidental use. Can also be set to“hot isolation mode”for added safety
- Low-energy lights signal when boiling water is ready, chilled water is ready, or filter change is due
- Hidden light sensor sends appliance to sleep to conserve energy whenever the room goes dark
- Sleeps or powers OFF after 2 hours of non-use
- Plus inbuilt 24 / 7 on / off timing allowing power to be turned off for weekday or weekend periods
Boiling / Chilled / Sparkling
Filtered / Instantly
The brilliant new generation of the world's most advanced drinking water applicance.
The intelligent G4 Command Centre energy-saving technology
A. Location
Tap must be positioned so that it drains into a suitable sink, or be installed on the optional "tap font kit" which is plumbed to waste. Tap should be situated as closely as possible to directly above the under-sink Command Centre. Maximum distance from the base of the tap to the Command Centre is one metre. Command Centre must have clearances as shown on the drawings. Ventilation accessories (supplied) must be installed as per instructions.
B. Plumbing
Designed for direct connection to a potable (drinkable) cold water supply with minimum pressure of 172 kPa. A 500 kPa pressure limiting valve is fitted internally. An isolating valve should be fixed between the water supply and the under- bench Command Centre.
C. Electrical
Models BC 160/125 and BC 160/175 are designed to be connected to a 10 amp GPO, 220-240 Volt AC power supply. Model BC 240/175 is installed with an externally mounted 2.2 kW booster unit and must be connected to two separate 10 amp power points.
D. Venting
A vent in the tap head may discharge small amounts of water or steam so the tap must be mounted where it can drain. The cupboard containing the operation unit must be amply ventilated.
A ventilation grill & dust kit are also provided with each unit for high usage applications. When installing the unit where minimum clearances are met.
Caution
In some hard water areas where mineral scale accumulation can become a problem, consideration should be given to the maintenance required. All G4 Command Centre units come with an internal bypass for an additional external filtration system if required.
Accessories

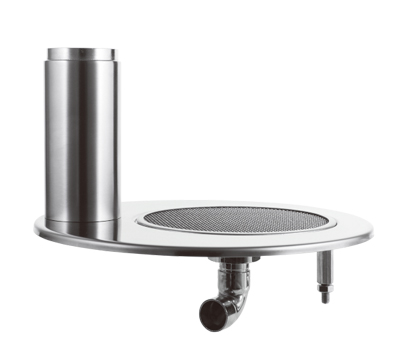

90915 - Zip G4 font installation kit 91290- Zip 0.2 micron replacement filter To order any model to be supplied with extended levers and Braille pads, add D to the end of the Order Code.
New G4 Zip Command-CentreTM leads the world in time-saving, energy-saving technology.
- Advanced insulation and electronics technology reduces standby energy power.
- Self-calibrates boiling point upon installation, regularly re-calibrates and optimises performance.
- Simple pin-code-protected touch-screen puts managers in total control of each appliance.
- Adjustments include temperature, dispensing time, safety settings, energy-saving settings.
- Continuous self-diagnostics system monitors performance, provides total history on demand.
- Inbuilt cross-ventilation system eliminates cupboard heat-up; no need for an external fan.
- Multiple filter life settings, with precise litre monitoring, to optimise filter replacement timing.
- Added peace-of-mind features include overload protection, temperature monitoring, internal leak detection, plus an internal pressure limiting valve.
Zip Hydro Tap now supports your sustainability aims as never before.
- Conserves water. New, improved air-cooled system with inbuilt cross-ventilation, does not dump water to waste. An environmentally responsible solution.
- Conserves energy. Choice of four energy-saving settings to allow site managers to adjust each installation to operate with optimum energy efficiency.
- RoHS Compliant. All materials involved in Zip HydroTap manufacture comply with the European Restriction of Hazardous Substances Directive 2002/95/EC.
- Red List Compliant. Designed to meet the sustainable initiatives of the Living Building Challenge by eliminating prohibited materials shown on the LBC Red List.
