  • BC-Tap 3 Boiling & Chilled Water System

  • Overview
  • Specifications
  • Options
  • Download
Features
  • Grade 1 Energy Efficiency Rating Label
  • Optional Wall-mounted Wireless LCD Display Panel ( Temperature & System Status )
  • Hot / Chilled or Hot / Ambient Water
  • LCD Display Control Panel
  • 100 ºC Boiling Water, Adjustable Temperature ( 30 - 100 ºC )
  • Water Leakage Detection and Automatic Shut-off Control
  • Scheduled On / Off Mode
  • Sleeping Mode when Idle
  • Various dispense options to choose from
BC-TAP MAKES YOUR LIFE EASIER

Blanching, boiling, brewing-up, sterilizing, cleaning. Tea, coffee, broccoli, spaghetti, eggs. Morning cuppa, baby's bottle, midnight feast. The more you use it, the more things you think of to do with it.

ENERGY SAVING

It enters into sleeping mode when the surrounding lighting is dark.
The system's boiler will be off in the mode. It wakes up when any button is touched.

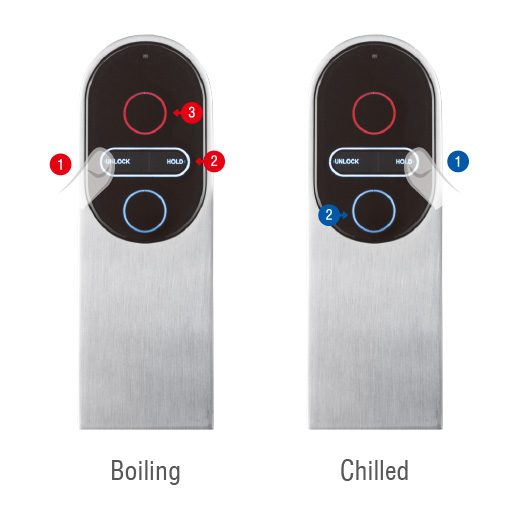

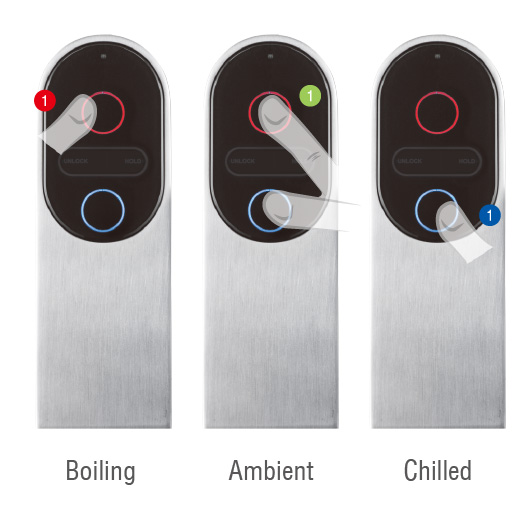

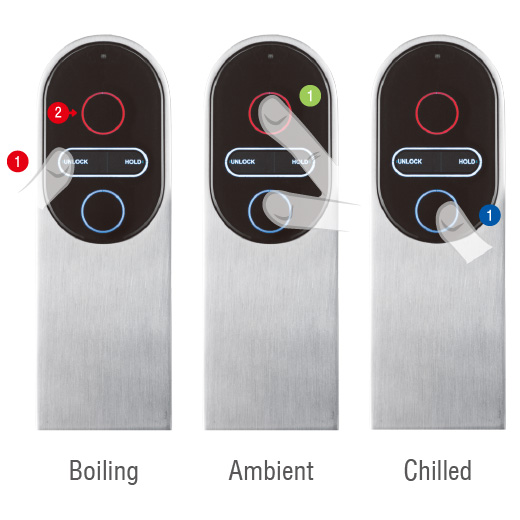

DISPENSING WATER
Standard Mode

( with Unlock & Hold selective buttons )


Continuous water dispensing

a touch of any button to stop

Press and hold to dispense water

release when filled

Basic Mode

( with Red & Blue buttons only )


Press and hold to dispense, release when filled

Hot water delays seconds ( 1 - 5 settable ) to outflow
release when filled

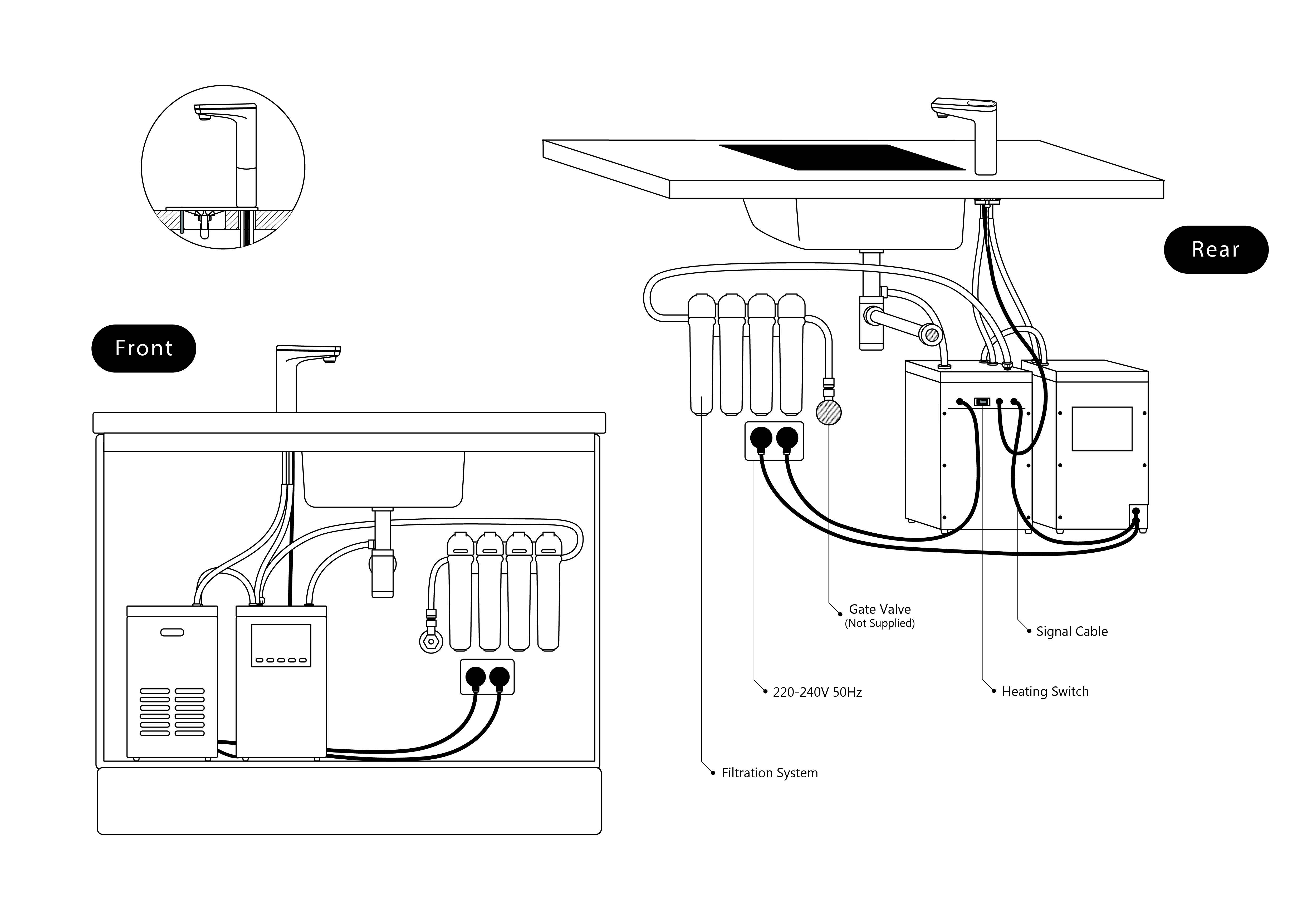

Installation Diagram | Video

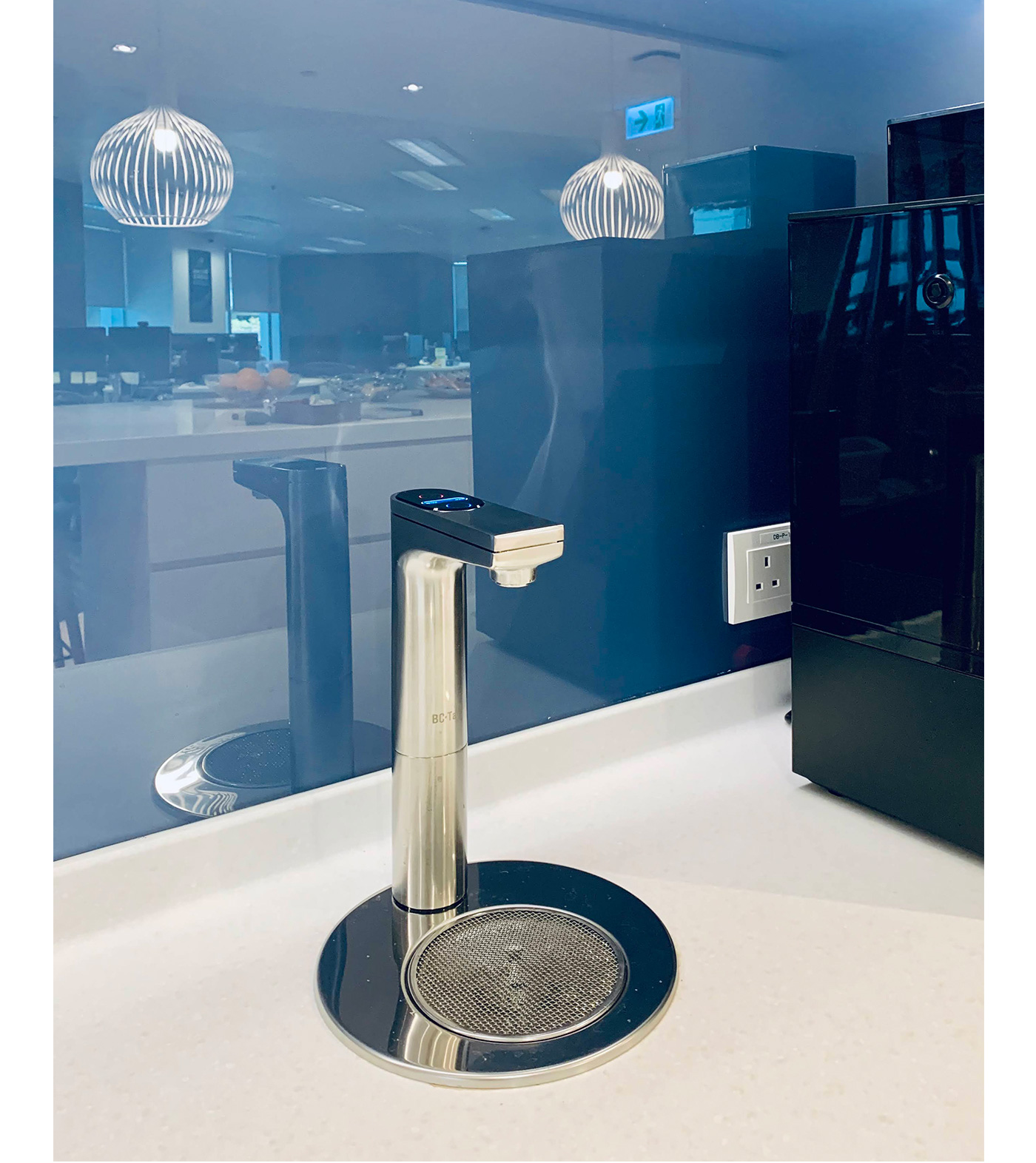

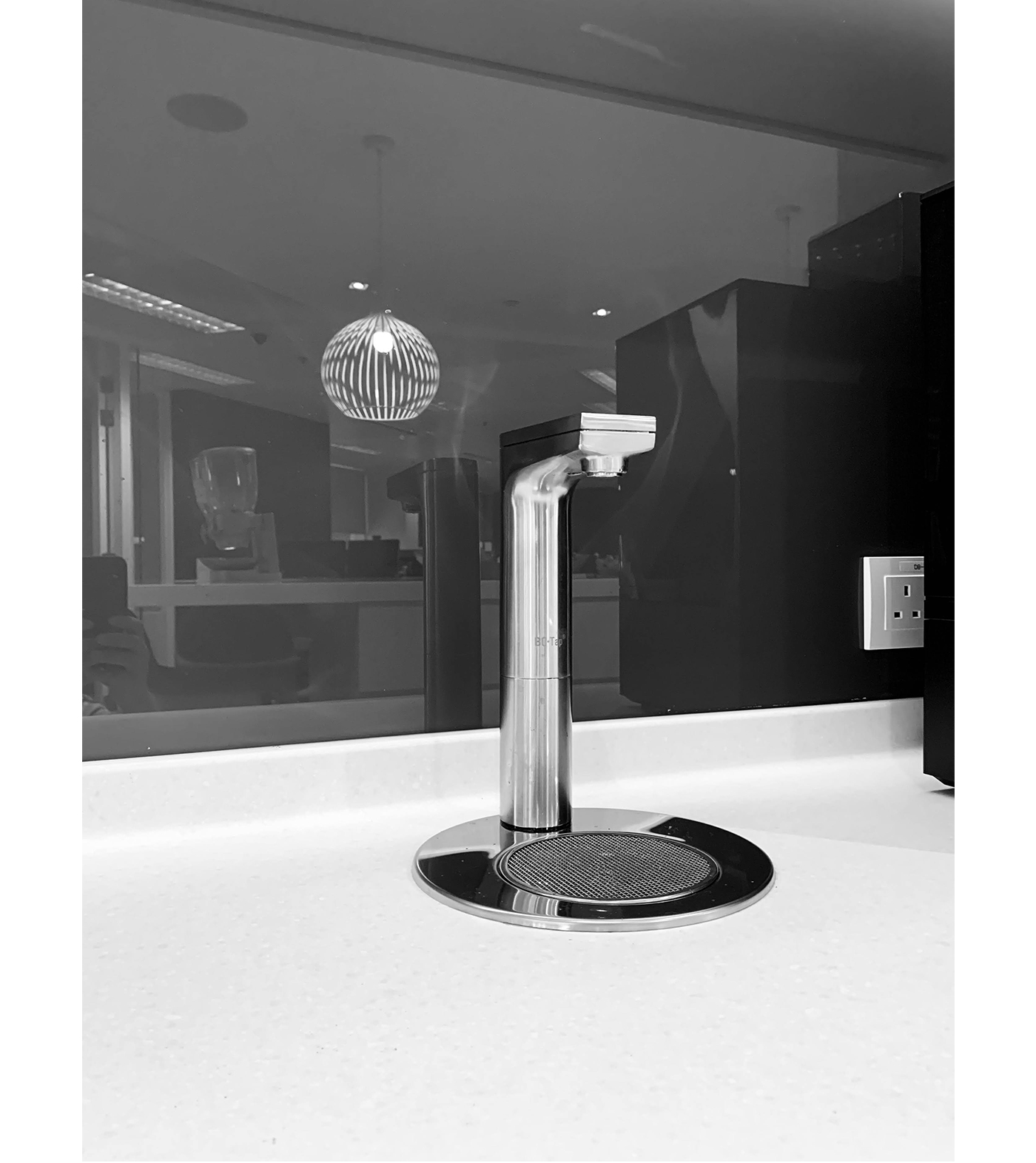

Café at Home

If you like tea and coffee, you'll love them even more with the BC-Tap in place. Whether in making coffee or tea, pure water brings you the best taste. With professional filtration system, the BC-Tap provides pure boiling & chilled water enabling the aroma of drinks to be more highlighted. Your kitchen feels like an awesome cafe, bringing you a deep sense of life.

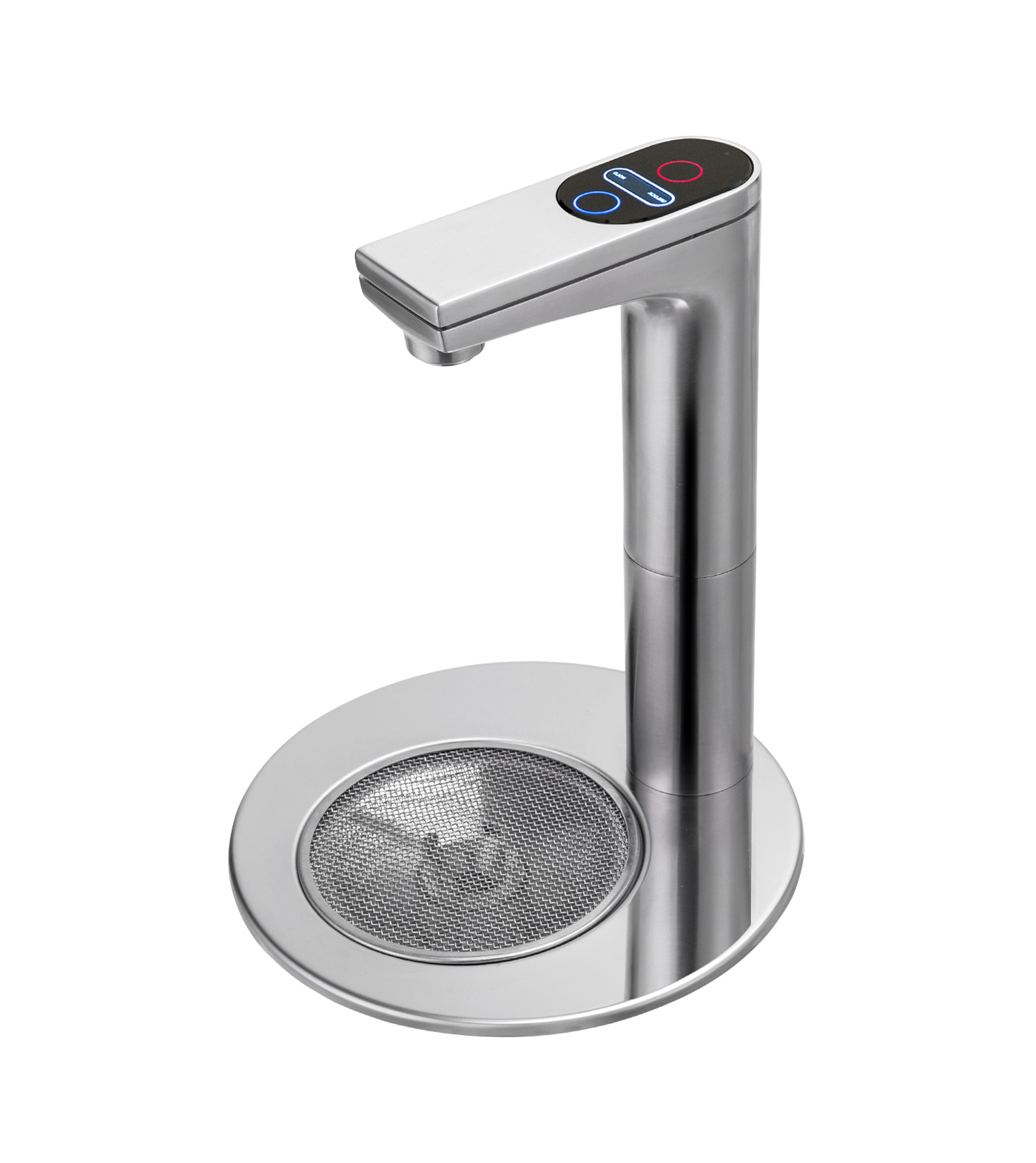

BC-Tap 2 Faucet

W 55 x D 150 x H 270

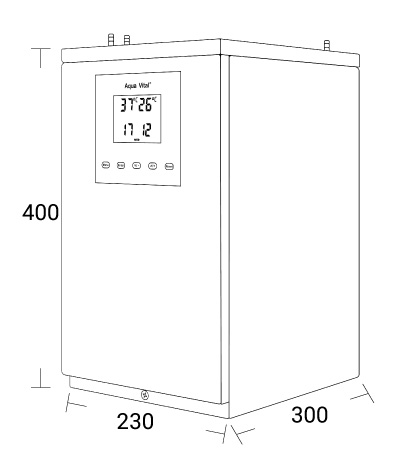

BC-Tap 2 Boiler

W 230 x D 300 x H 400
AC 220V / 50 - 60 Hz / 1,550 W

Faucet

Body made of Stainless Steel ( #304 )
Hairline Brushed Finish

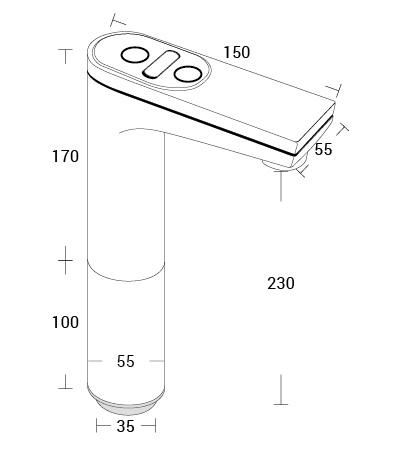

Dimension : 55 ( W ) x 150 ( D ) x 270 ( H ) mm ( + / -5 )


Boiler

Grade 1 Energy Efficiency Rating Label
Hot Tankmade of Stainless Steel ( #316 )
Casing made of Stainless Steel ( #430 )
Touch LCD control panel
Hot water Recovery Rate : 36 L / hr
Insulation : Styrofoam
Dimension : 230 ( W ) x 300 ( D ) x 400 ( H ) mm
Weight : 8.3 kg


Chiller

Casing made of Stainless Steel ( #430 )
Cold water Recovery Rate : 20L / hr
R-134a Refrigerant
Air-cooled
Dimension : 230 ( W ) x 300 ( D ) x 400 ( H ) mm
Weight : 13.8 kg


Drip Tray

Stainless Steel ( #304 )
Dimension : Ø 218 x 78 ( H ) * mm -- * Tray base 6 mm from top of benchtop
Hole opening : Refer to the cutting template


Accessories

Water Mains : 1 / 2" NPT
Water In : Stainless Steel Wire Braided Hose
Connecting Tube
Boiler to Faucet : Teflon ( Ø 8 mm )
Chiller to Faucet : Teflon ( Ø 8 mm )
Power Cord : UK13A


Filtration System

NF / 4-Stage Filters Nano Filtration ( NSF 42 & 53 Compliance )
1. Sediment Pre-Filter / 5 Microns
2. KX Carbon Block Filter / MMF-2710-F1-CBR
3. Hollow Fiber Membrane / 0.01 Micron
4. GAC Carbon Post Filter
Water Production Rate : 2 L per minute
Working Pressure : 20 - 80 psi


Power Consumption

Boiler : AC 220V / 50 - 60 Hz / 1,550 W
Chiller : AC 220V / 50 - 60 Hz / 160 W


Water Tank Capacity

BA Model : ( Hot ) 4 L or 36 L / hr | ( Ambient ) 115 L / hr
BC Model : ( Hot ) 4 L or 36 L / hr | ( Chilled ) 2L or 20 L / hr


Water Temperature

BA Model : ( Hot ) * 30°C - 100°C / ( Ambient ) Room Temperature
BC Model : ( Hot ) * 30°C - 100°C / ( Chilled ) 4°C - 10°C
* Adjustable from 30°C - 100°C

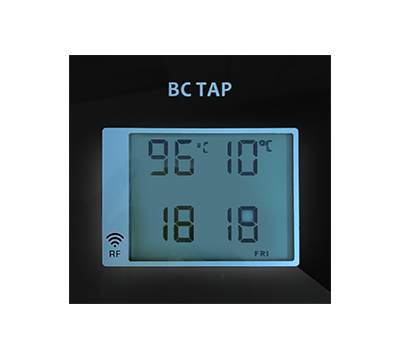

Wireless LCD Display Panel

Wall-Mounted

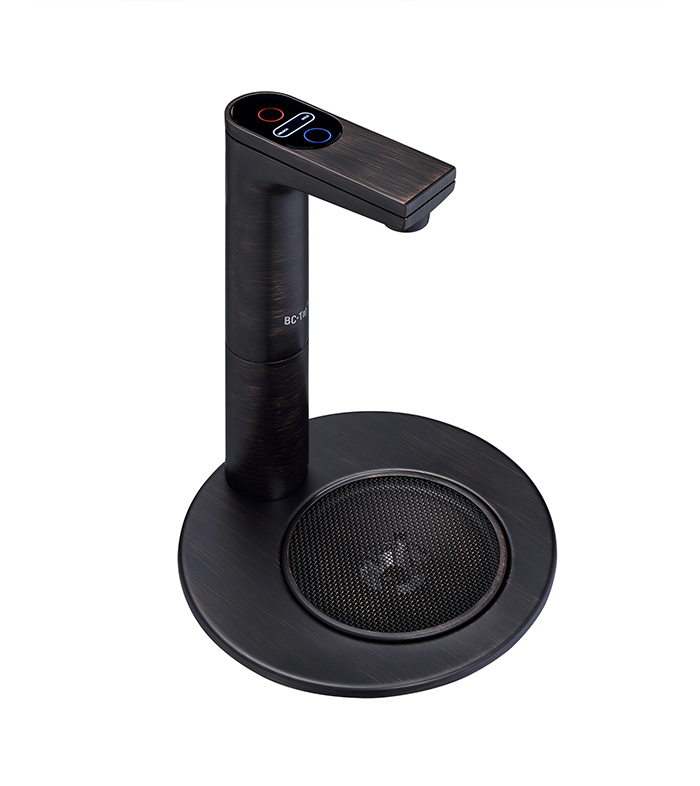

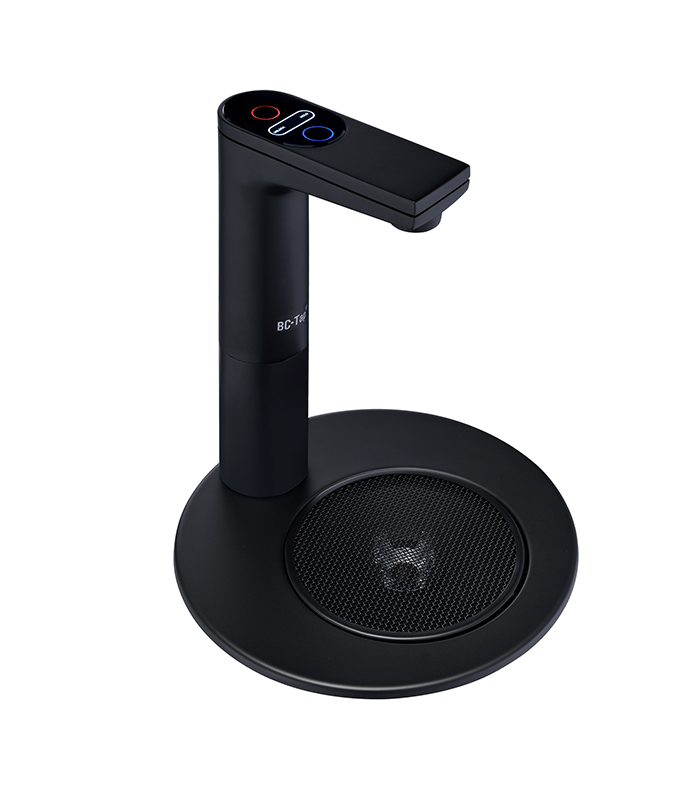

Tap Font

Drip Tray

NF2

Filter System

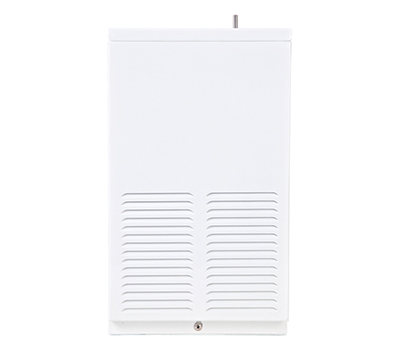

BC-Tap 3 Chiller

AC 220V / 50 - 60Hz / 160W
